Name: Other Peak Current Amps 42 Torque Output Power 5.4 W 565 Nm DC BRUSHLESS GEAR MOTOR
Brand: Other Peak Current Amps 42 Torque Output Power 5.4 W 565 Nm DC BRUSHLESS GEAR MOTOR
SKU: S86BL105-430-02
Price: 153.00 USD
Availability: InStock
Rating: 4.6 (181 reviews)

Other Peak Current Amps 42 Torque Output Power 5.4 W 565 Nm DC BRUSHLESS GEAR MOTOR

10 Pieces

MOQ

$153.00(10 - 99 Pieces) $137.70(100 - 199 Pieces) $122.40(>=200 Pieces)

τιμή

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 3months-1year

Model Number: S86BL105-430-02

Usage: Other

Type: Brushless Motor

Torque: 1.8

Construction: Permanent Magnet

Commutation: Brushless

Speed(RPM): 3000

Number of poles: 4

Number of phases: 3

Rated speed RPM: 3000

Πιστοποίηση: ce, RoHS

Βασικές πληροφορίες

Πιστοποίηση: ce, RoHS

Model Number: S86BL105-430-02

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

Product Description

Peak current Amps 42 torque N-M 5.4 Output power W 565 BRUSHLESS DC PLANET GEAR MOTOR

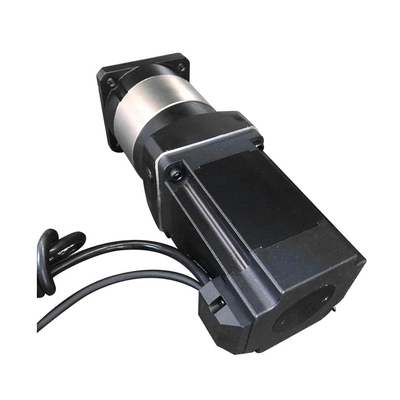

86mm BRUSHLESS DC PLANET GEAR MOTOR

Product details

Number of poles	4
Number of phases	3
Rated speed RPM	3000
Product Keywords	Peak current Amps 42 BRUSHLESS DC PLANET GEAR MOTOR,Peak torque N-M 5.4 BRUSHLESS DC PLANET GEAR MOTOR,Output power W 565 BRUSHLESS DC PLANET GEAR MOTOR

Housing Material	Metal
Bearing at output	Ball Bearings
Rated speed RPM	3000rpm
Average life span	20000 hours
Ambient Temperature	-20℃~+50℃

Model	S86BL80-430	S86BL105-430	S86BL115-430	S86BL130-430	S86BL130-630
Number of poles	4
Number of phases	3
Nominal voltage VDC	48	48	48	48	310
Rated speed RPM	3000	3000	3000	3000	3000
Rated torque N-M	1	1.8	2.1	2.5	2.5
Rated current Amps	8.5	14.8	17	19.5	4
Output power W	314	565	659	785	785
Peak torque N-M	3	5.4	6.3	7.5	7.5
Peak current Amps	25	42	51	55	12
Torque constant N-M/A	0.131	0.131	0.127	0.127	0.127
Back EMF constant V/KRPM	13.7	13.7	13.3	13.3	13.3
Rotor inertia Kg•mm²	120	230	266	320	320
Body length mm	80	105	115	130	130
Mass Kg	2.3	3.4	3.8	4.3	4.3

Other Peak Current Amps 42 Torque Output Power 5.4 W 565 Nm DC BRUSHLESS GEAR MOTOR

Peak current Amps 42 torque N-M 5.4 Output power W 565 BRUSHLESS DC PLANET GEAR MOTOR
